The trend of new electronic devices shows the direction to lightweight and highly integrated designs, which have driven a growing demand for smaller, higher-performing components. MLCCs, with their compact size, high capacity, and low equivalent series inductance (ESL), are well-suited for meeting the requirements of high-speed circuits and stable voltage regulation. To address these market needs, the length-width transposed MLCC has emerged as a key innovation. By adjusting the length-to-width ratio of the capacitor, this technology optimizes performance and significantly reduces both ESL and equivalent series resistance (ESR). This results in lower impedance across the entire frequency spectrum, providing enhanced filtering performance.

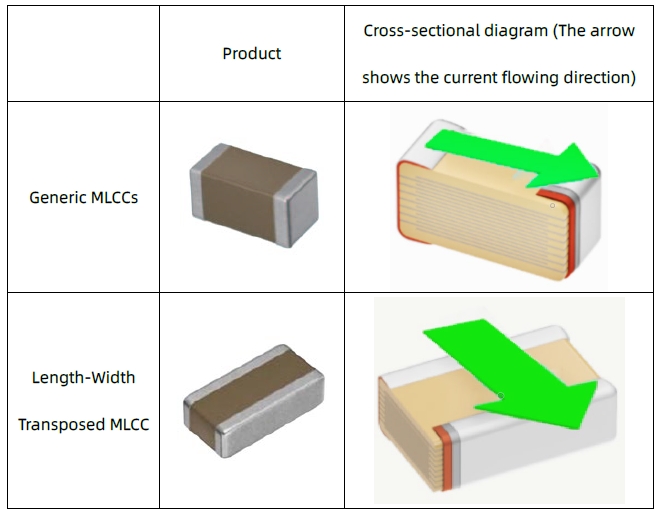

EYANG Technology has successfully developed a series of length-width transposed MLCC products to cater to the evolving needs of advanced technologies and key clients. A comparison between the common 0402 package and the transposed 0204 package highlights the advantages of this innovative design:

Key Advantages of Length-Width Transposed MLCCs

1.Lower ESL/ESR a

• The transposed design shortens the current path and widens the conductive trace, effectively reducing ESL and ESR. This is particularly critical in high-frequency applications, as lower ESL minimizes circuit distortion and preserves the integrity of RF signals.

2.Compact Design

The length-width transposed MLCC allows for higher capacitance values in smaller packages. This supports miniaturization and low-profile designs in electronic devices. The thinner profile also enables installation in tighter spaces, such as directly on the backside of processor packages, further advancing processor compactness.



3.Fewer Decoupling Capacitors

Thanks to superior filtering performance, fewer decoupling capacitors are needed. Alternatively, smaller package capacitors can achieve equivalent filtering effects, optimizing circuit design.

4.Enhanced Reliability

Lower ESR reduces self-heating, extending the lifespan of the capacitor and improving overall circuit reliability.

Performance Comparison: 0402 vs. 0204

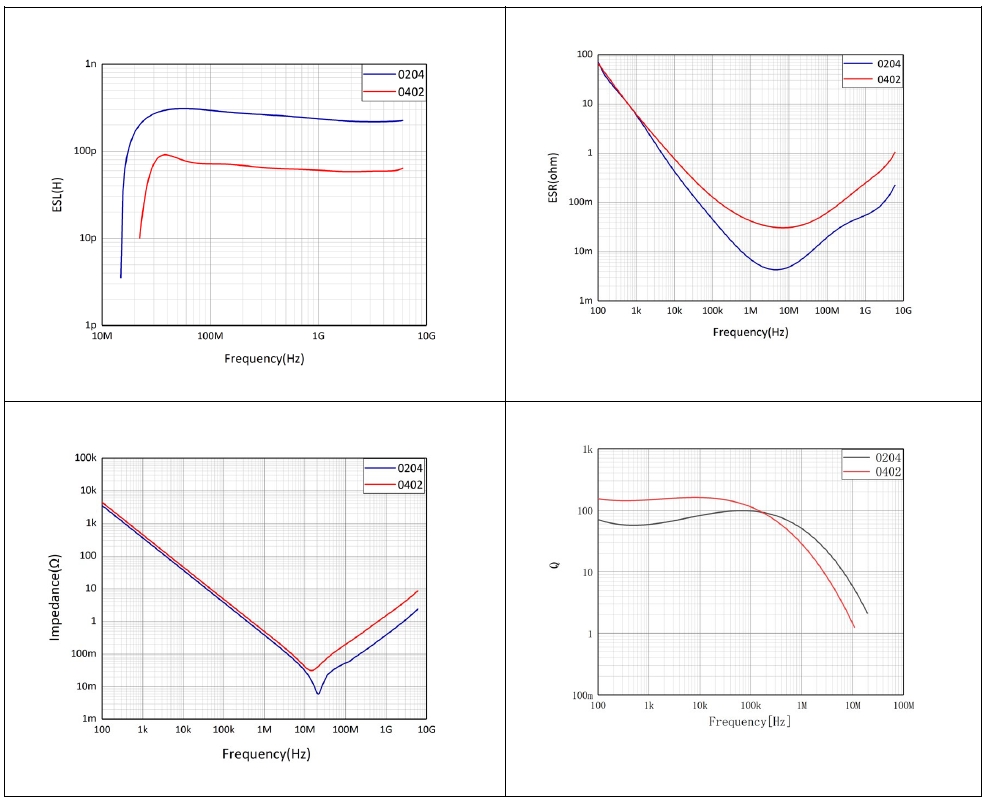

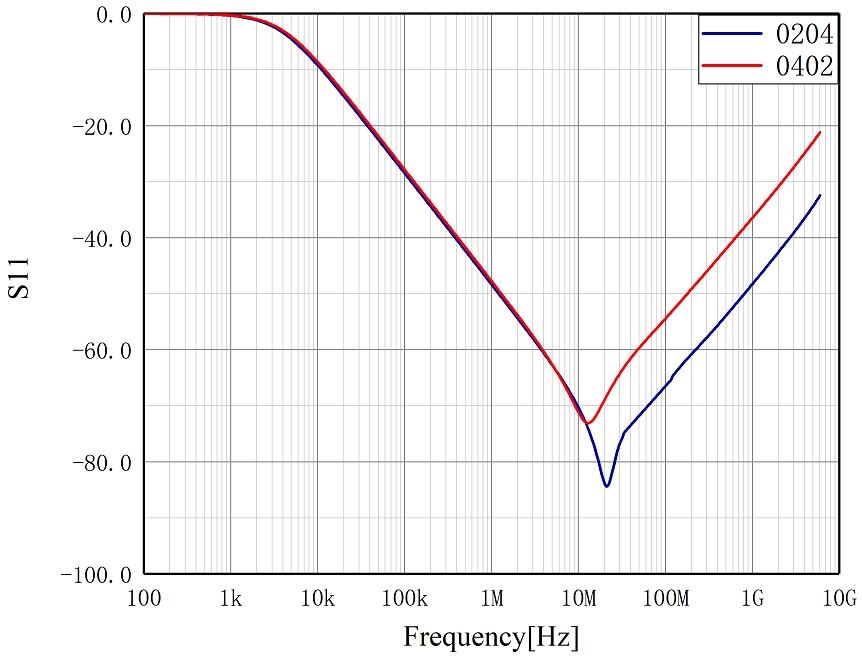

Frequency response curves of 0402 and 0204 packages demonstrate the superior performance of length-width transposed MLCCs. These capacitors exhibit:

- Low ESR

- Low ESL

- High Self-Resonant Frequency (SRF)

These characteristics ensure excellent performance in impedance matching, signal integrity, and circuit stability.

Application Areas

The unique design of length-width transposed MLCCs makes them ideal for:

- Automotive electronic control units (ECUs)

- Advanced driver-assistance systems (ADAS)

- RF signal processing

- High-performance computing

These capacitors improve circuit performance, save space, and reliably operate in high-temperature environments.

Future Outlook

As technology continues to evolve and market demands grow, high-performance capacitors like length-width transposed MLCCs will play an increasingly vital role in advanced applications. EYANG remains committed to meeting customer needs by leveraging its strengths in product design, manufacturing improvement, and application services. Our goal is to become a globally recognized leader in MLCC innovation.

For further inquiries or technical discussions about our length-width transposed MLCC products, please contact our sales or field application engineering teams.
